Minelab Vanquish 540 Metal Detector

Regular price
$369.00
Sale price
$369.00
Regular price
$480.00
Sold out
Unit price
per
Free Shipping within the USA

OVERVIEW

VANQUISH 540: for the serious detectorist who demands ultimate performance. As if Multi-IQ technology, audio control, and pinpoint wasn’t enough the 540 also boasts iron-bias control, red LED backlight and rechargeable batteries. What’s more, it comes with a waterproof 12” coil as standard for greater depth. No matter where the hunt takes you, the 540 is the ultimate detector that lets you detect on your terms.

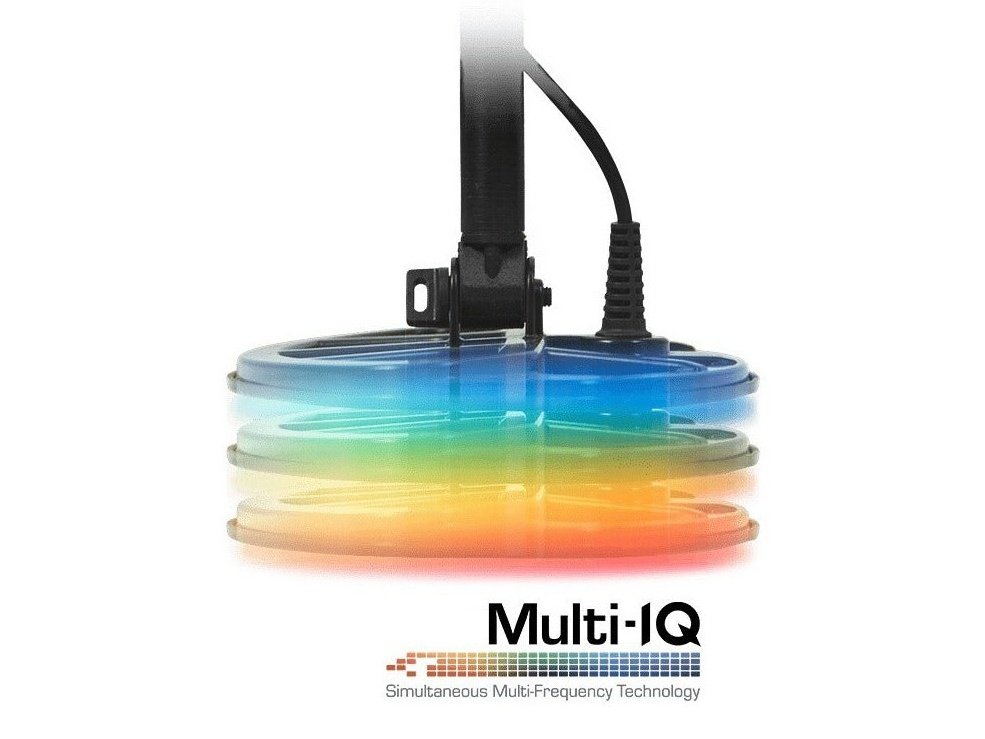

SIMULTANEOUS MULTI-FREQUENCY

Why Multi-IQ? Because with Minelab’s revolutionary Multi-IQ technology, you’ve got the combined power of multiple detectors in one — all working for you at the same time. Simply turn on and go. Nothing goes undetected and no terrain is off limits. Silver, gold or jewellery. Park, field or beach. Unearth the power of VANQUISH with Multi-IQ.

ALL METALS.  ALL SOILS.   ALL THE TIME.

ALL-TERRAIN

No matter what you seek, VANQUISH has you covered. Simply select one of the four Search Modes — Coin, Relic, Jewellery, or Custom — then start swinging. Each mode is pre-programmed and optimised to give you the best performance, anytime and anywhere: park, field or beach. You can even save your favourite settings to a custom Search Mode.

VANQUISH welcomes tough terrain. It dominates at the beach in wet sand and salt water, outperforming other detectors that can’t compete. 25 discrimination segments deliver ultimate control over what metals you want to accept or reject.

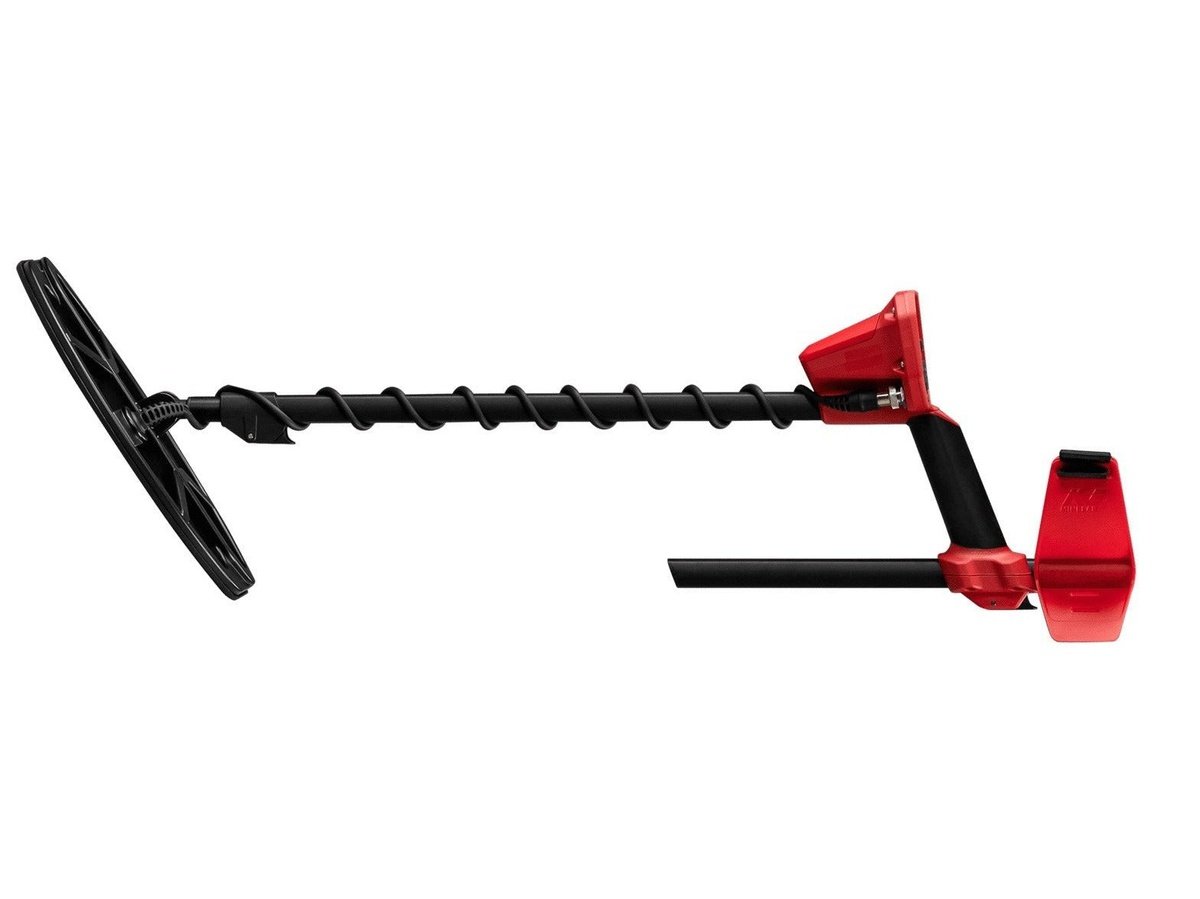

PACK AND CARRY

1.3kg (2.8 lbs) light with a unique collapsible snap-lock system makes it easy to pack and go.

IRON BIAS

More treasure, less trash. Adjustable Iron Bias control lets you switch between High (default) and Low.

INCLUDED V12 COIL

Cover more ground and search deeper with the V12 12”x9” V12 coil included as standard.

AUDIO CONTROL

Automatic noise cancelling, lag-free audio response and 10-volume settings put you in control.

WATERPROOF

Waterproof coils up to 1 m (3.3 ft) and Water Resistant control pod (with included Rain Cover).

PINPOINT MODE

Included pinpoint mode to help you locate targets with extreme precision.

BACKLIGHT

Red LED Backlight to help low-light vision.

VANQUISH 540 TECH SPECS

*Search Modes
Coin, Relic, Jewellery, Custom, All Metal
*Custom User Search Profile
Yes
*Operating Frequencies (kHz)
Multi-IQ
*Noise Cancel
Auto (19 Channels)
*Bluetooth Audio
Yes
*Iron Bias
High (default), Low
*Sensitivity
10 levels
*Volume
10 levels
*Target Tones
5 tones
*Discrimination Segments
25 segments
*Target ID's
-9 to 40
*Depth Indicator
5 levels
*Length
Extended: 57"
Collapsed: 30"
*Weight (incl. batteries)
2.9lbs (1.3kg)
*Standard Coil
V12 12"x9" Double-D
*Audio Output
In-built loudspeaker
3.5mm (1/8") headphones
Bluetooth wireless headphones
*Supplied Headphones
Wired 3.5mm (1/8") headphones
*Display
Monochrome LCD with red backlight
*Supplied Batteries
4 x AA NiMH rechargeable
*Waterproof
Coil to 1m/3-feet
*Operating Temperature Range
-10°C to +40°C (+14°F to +104°F)
*Storage Temperature Range
-20°C to +70°C (-4°F to +158°F)
*Key Technologies
Multi-IQ, Bluetooth, aptx™ Low Latency
*Warranty
3 years control box and coil
