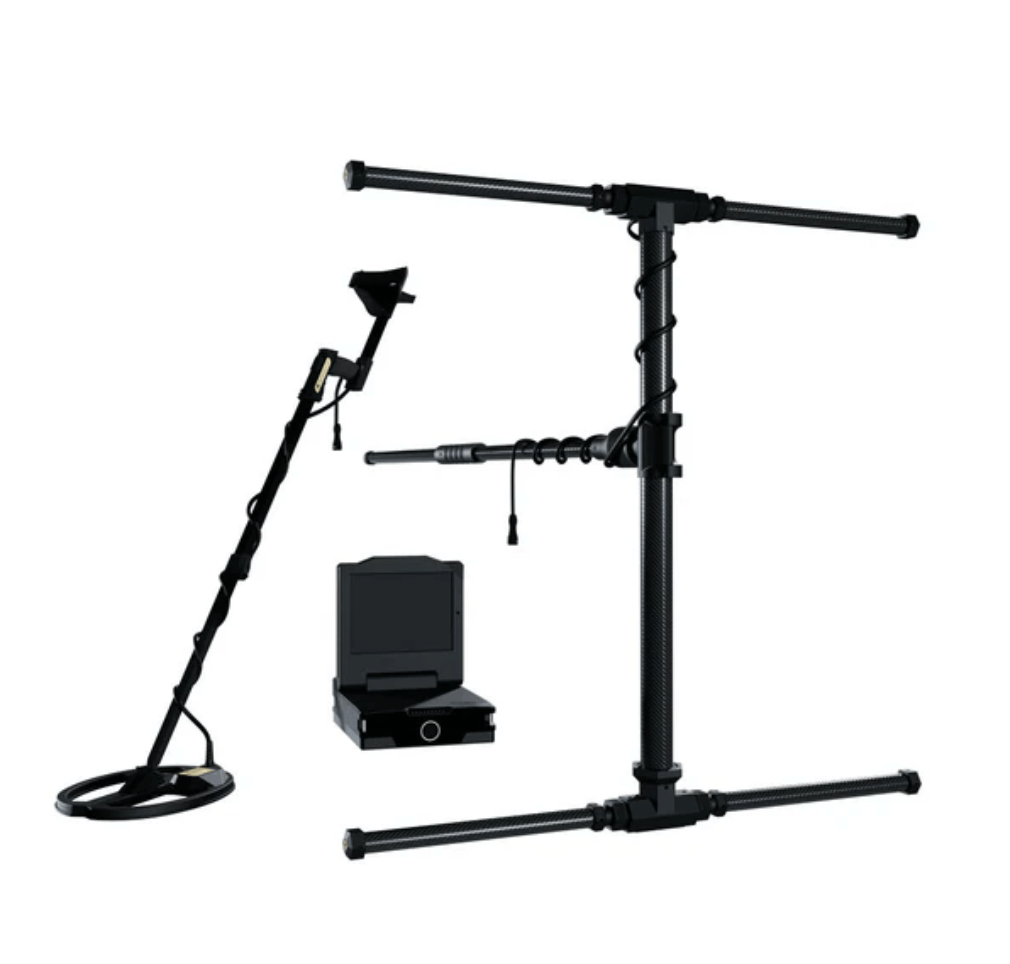

OKM eXp 7000 Professional Plus Metal Detector – Advanced 3D Ground Scanner for Gold & Underground Structures
The OKM eXp 7000 Professional Plus metal detector is a professional-grade 3D ground scanning system designed for archaeologists, treasure hunters, and gold prospectors. Combining 8 advanced detection modes with cutting-edge technology, it allows precise detection of underground structures, tunnels, voids, mineralized zones, and metal objects at depths up to 25 meters (82 feet).

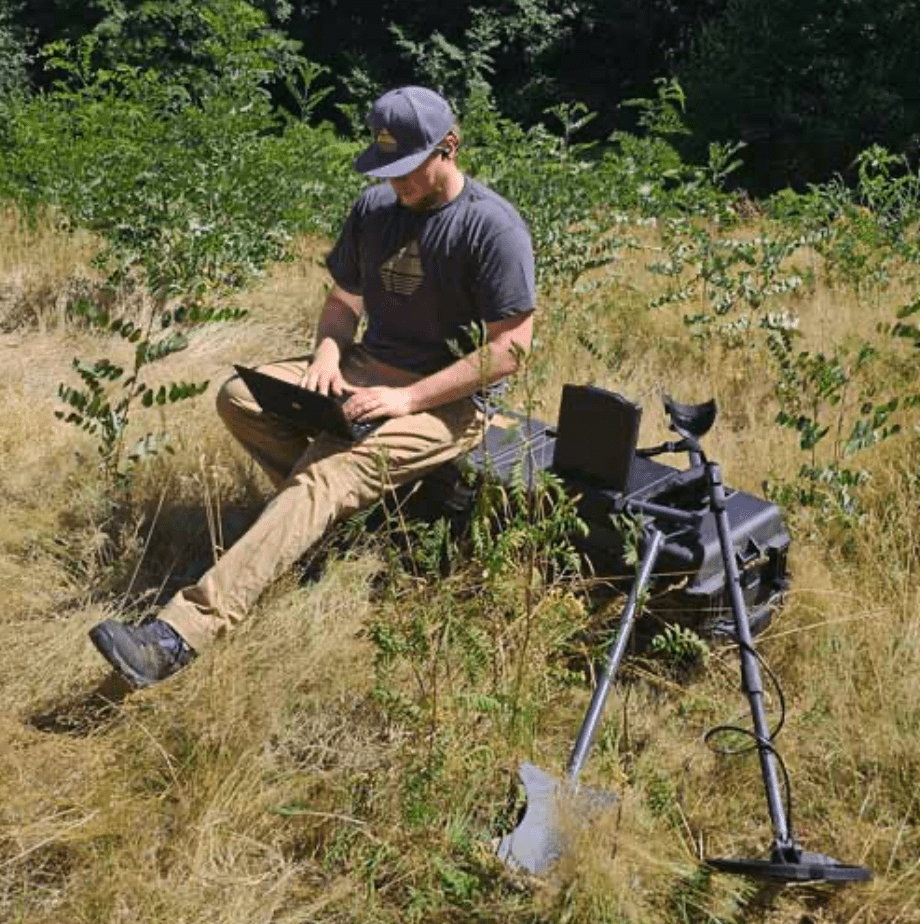

With the 3D Ground Scan, users can visualize buried objects and anomalies in detailed 3D graphics using Visualizer 3D Studio, ensuring accurate analysis before excavation. The Mineral Scan mode detects natural gold deposits and mineral-rich zones, while the Tunnel Scan identifies underground cavities and tunnels, making it perfect for exploration and geophysical surveys.

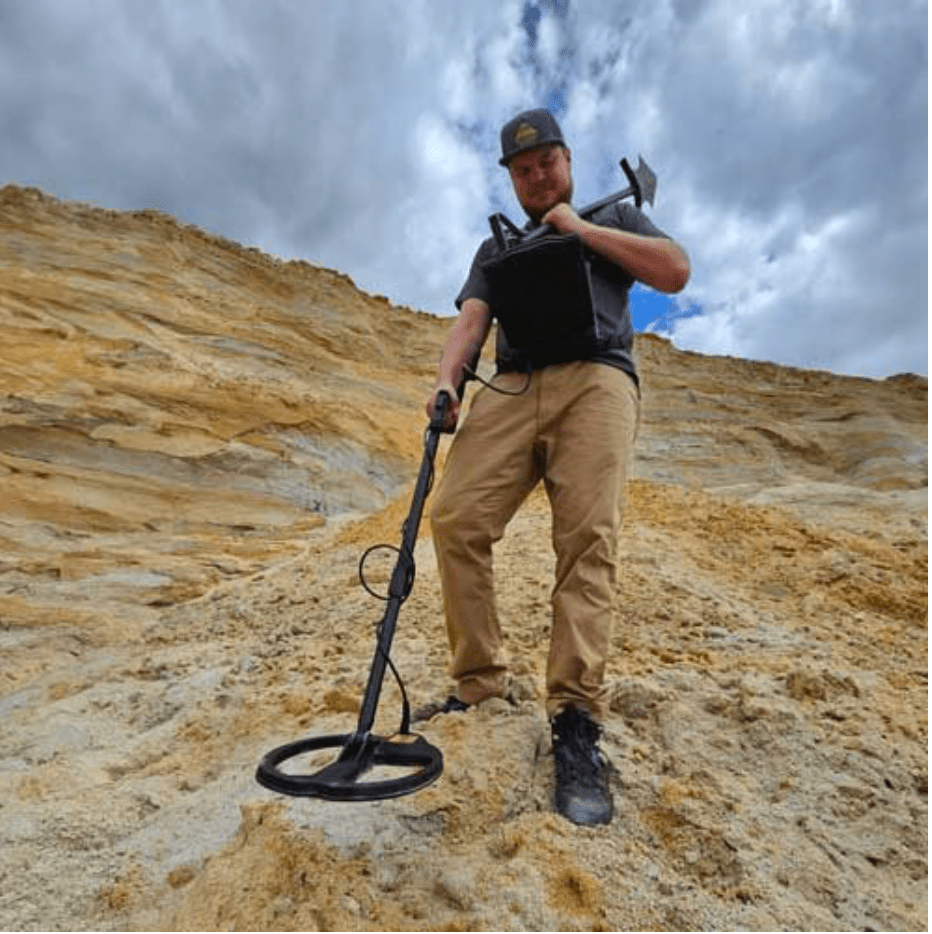

The VLF Metal Detection system, including the innovative 3D VLF Scan, allows efficient scanning for coins, jewelry, relics, and small artifacts without unnecessary digging. Built-in metal discrimination, Target-ID zones, and multi-frequency scan profiles help focus on valuable metals like gold and silver, while filtering out iron or scrap.

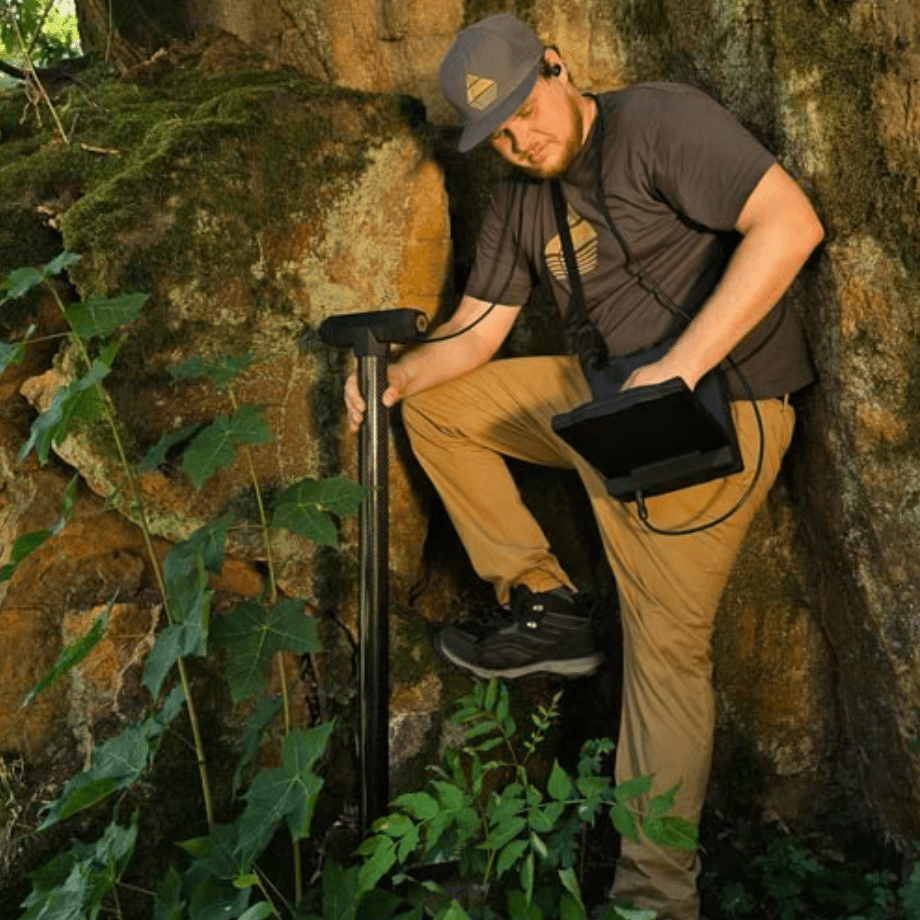

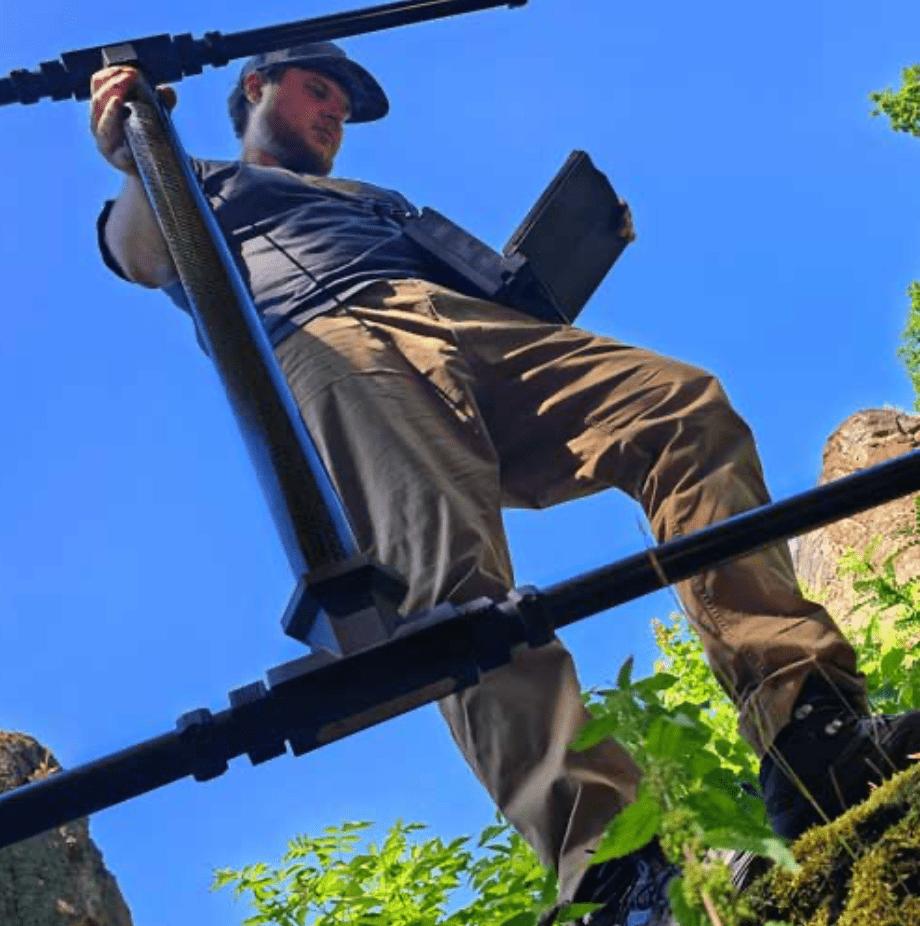

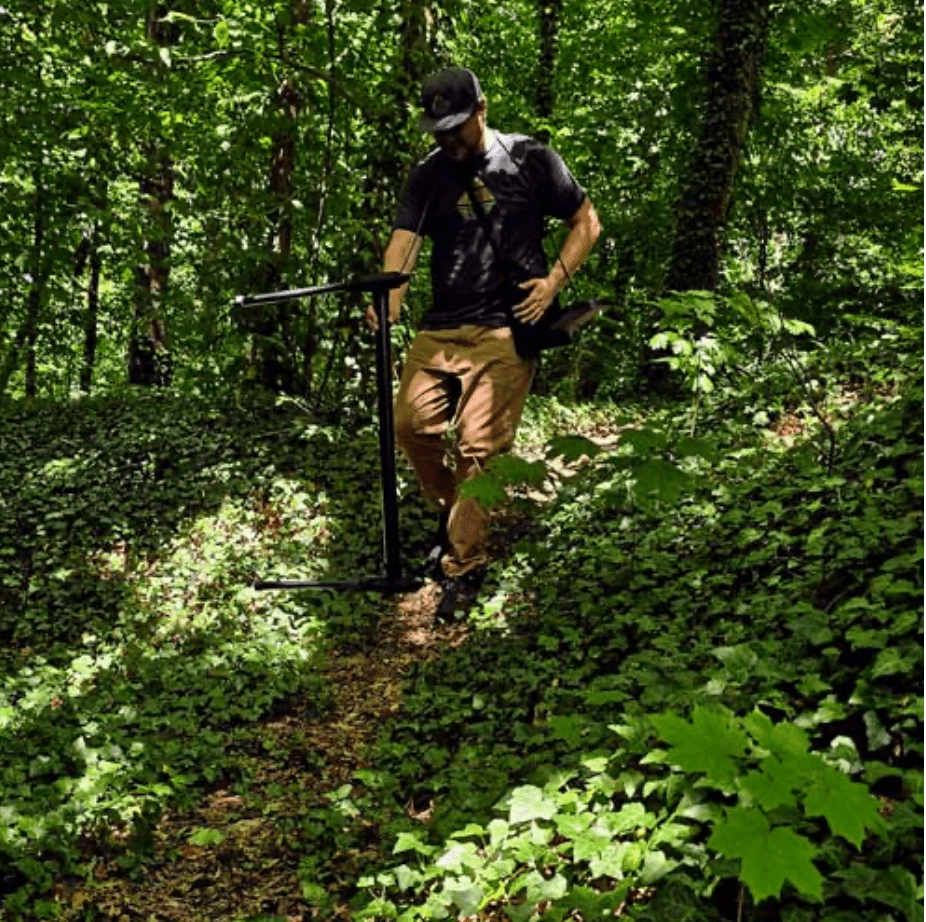

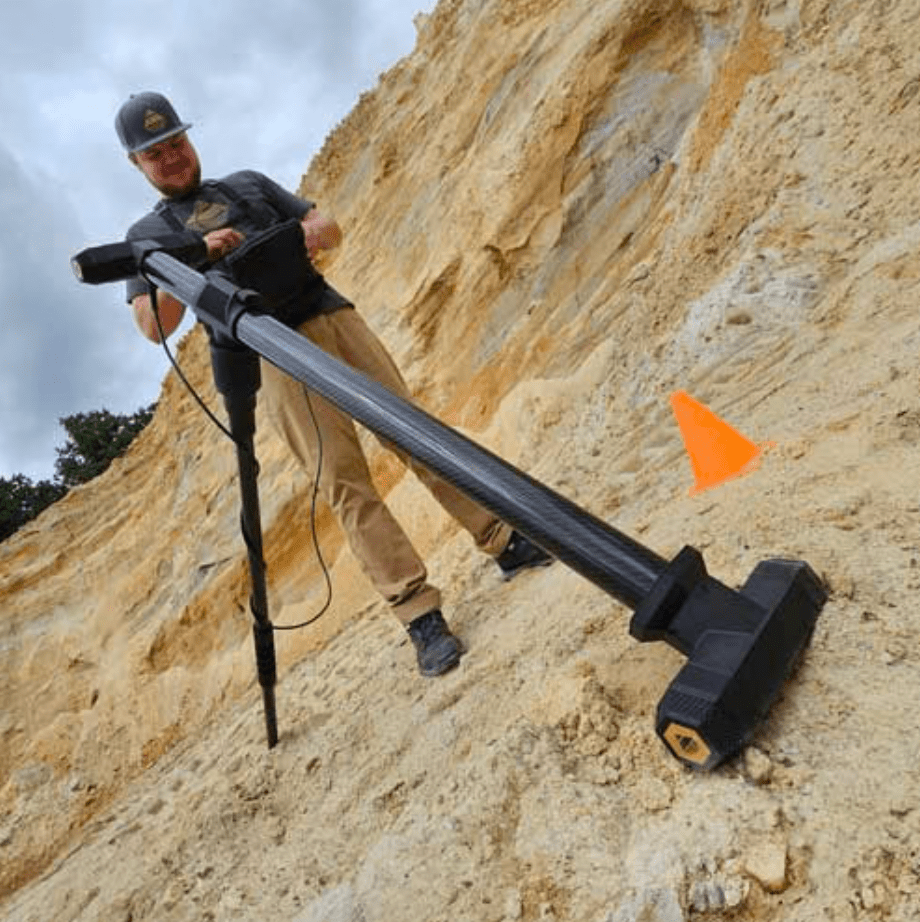

Equipped with the SuperSense System X7, the detector adapts to both large open terrains and narrow environments, from deserts and forests to caves and rocky slopes. Multiple sensor configurations reduce scan lines while maintaining high resolution, saving time during large-scale surveys.
Whether for professional metal detecting, gold prospecting, archaeological research, or underground structure detection, the OKM eXp 7000 Professional Plus delivers unmatched precision, efficiency, and flexibility for serious explorers.

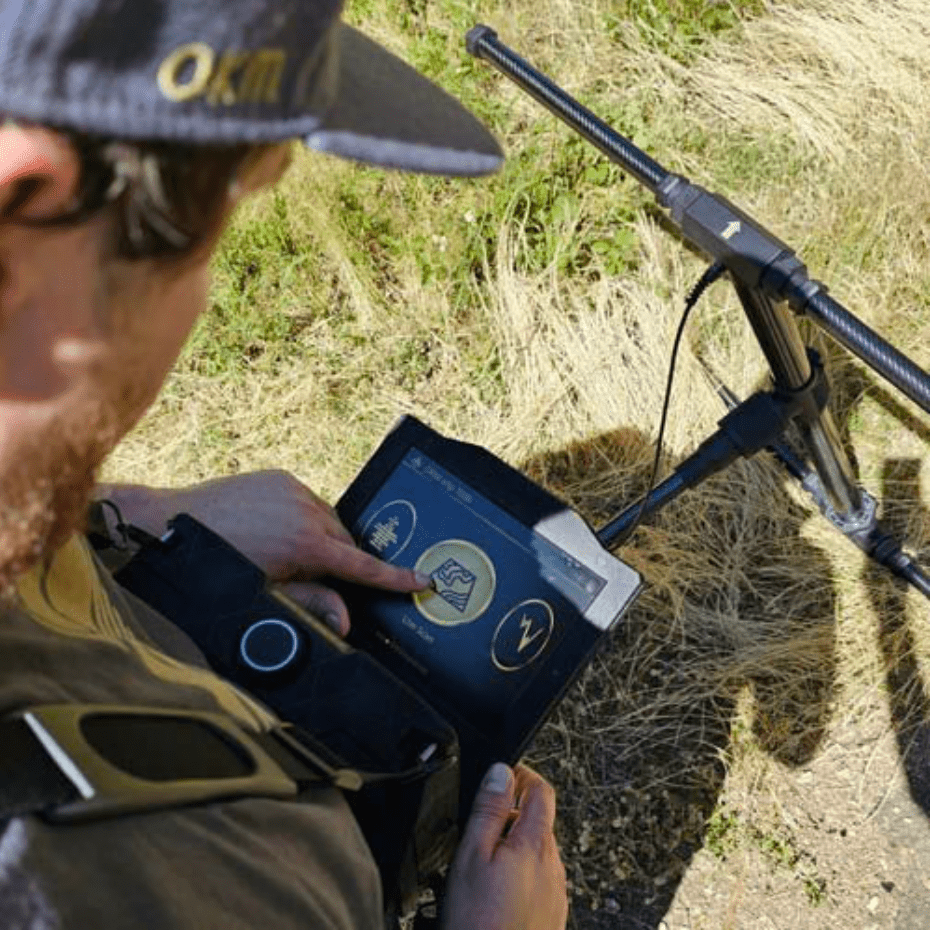

Control Unit
- Dimensions (H x W x D): 3.5 x 8.5 x 9.8" | 90 x 215 x 250 mm
- Weight: 66 oz | 1.86 kg
- Battery: Li-ion, replaceable, 7.27 V, 10.2 Ah, 74.154 Wh
- Input: 12 V DC, 3 A max
- Output: 6.4 - 8.4 V DC, 15 W max
- Operating Time (fully charged): 7 h @ 77 °F | 25 °C, medium brightness
- Charging Time: 3 h @ 50 – 86 °F | 10 – 30 °C
- Display: 8.4" Diagonal, 1024 x 768 Pixel LVDS IPS-LCD
- Processing Unit: Main (ARM Cortex 4x-A53@1.6GHz), Companions (1x-M33@96MHz, 1x-M4@48MHz, 1x-M33@38MHz, 1x-M7@216MHz)
- Working Memory (RAM): 2 GB
- Data Memory (eMMC): 8 GB
- Operating Temperature: -10 °C – 50 °C
- Storage Temperature: -20 °C – 60 °C
- Air Humidity: 5 % – 75 %
- Safety Class: IP40
- Waterproof: No
- Data Transmission: USB-C
- Feedback: acoustic, visual
- Audio: built-in Speakers or Bluetooth-LowLatency (A2DP)
Super Sensor
- Dimensions (L x W x D): 39.8 x 8.3 x 4.3" | 1010 x 210 x 110 mm
- Weight: 33.2 oz | 0.94 kg
- Cable Length: 70" | 180 cm
- Input: 6.4 - 8.4 V DC, 4 W
- Safety Class: IP40
- Receiver: Dual/Hi-Gain, Vertical, Geophysical Phase Reader/EMSR
- Sensor Technology: SCMI-15-D
- Processing Unit: ARM Cortex-M33@38MHz
Extender
- Length: 17.3" | 440 mm
- Diameter: 1.9" | 48 mm
- Weight: approx. 7 oz | 0.2 kg
- Input: 5.0 V DC, 0.25 W maximal
- Safety Class: IP40
- Sensor Technology: SCMI-15-D
VLF Coil X7
- Dimensions (L x W x H): 12.8 x 10.1 x 2.8" | 325 x 255 x 70 mm
- Weight: 24.7 oz | 0.7 kg
- Cable Length: 70" | 180 cm
- Input: 6.4 - 8.4 V DC, 2 W max
- Safety Class: IP40
- Technology: VLF
- Processing Unit: ARM Cortex-M7@216MHz
Detachable Carrying Rod
- Front Part with clamp, Dimensions (L x ⌀): 34.6 x 2.7" | 880 x 68 mm
- Front Part with clamp, Weight: 31.7 oz | 0.9 kg
- Midsection, Dimensions (L x ⌀): 27.8 x 1.4" | 705 x 35 mm
- Midsection, Weight: 14.8 oz | 0.42 kg
- Rear Part with counterweight, Dimensions (L x ⌀): 16.4 x 1.4" | 415 x 35 mm
- Rear Part with counterweight, Weight: 37.4 oz | 1.06 kg
- Length, assembled: 76.2" | 1935 mm
- Weight, assembled: 84.7 oz | 2.4 kg
The technical data are average values. Minor deviations are possible during operation.
Frequently Asked Questions (FAQ)
Q1: How deep can the OKM eXp 7000 Professional Plus detect?
A1: The 3D Ground Scan mode can detect underground objects and structures up to 25 meters (82 feet) deep, depending on soil conditions and target size.
Q2: Can this metal detector find gold?
A2: Yes. The Mineral Scan mode is designed for natural gold detection and identifying mineralized zones, making it ideal for gold prospectors.
Q3: Does it detect tunnels and underground voids?
A3: Absolutely. The Tunnel Scan mode is specifically built to locate cavities, tunnels, and underground voids with enhanced 3D visualization for analysis.
Q4: What types of metals can it detect?
A4: Using VLF Metal Detection, the OKM eXp 7000 finds coins, jewelry, relics, and small metal artifacts, while metal discrimination allows you to filter out unwanted iron or scrap metals.
Q5: Is this metal detector suitable for professional use?
A5: Yes. It is a professional-grade system used by archaeologists, geophysicists, and serious treasure hunters for high-precision underground scanning in a variety of terrains.
Q6: Can it be used in different terrains?
A6: Yes. The SuperSense System X7 with interchangeable extenders adapts to large open fields, deserts, forests, caves, and rocky slopes, allowing efficient scanning in both wide and narrow areas.
Q7: Does it provide real-time scanning feedback?
A7: Yes. The Live Scan mode gives immediate visual feedback, so you can see anomalies in real time and decide where to excavate.
