OKM Fusion Ultra Light Metal Detector
Fusion Ultra Light is an easy-to-use ground scanner for treasure hunters who look for long-time buried artifacts and treasures in the soil as well as in tombs, tunnels and caches. The treasure detector is a special edition combining the performance of Fusion Professional with the flexibility of Rover UC. This Ultra Light edition includes the OKM App for installation on your Android smartphone and the renowned scan analysis software Visualizer 3D Studio for installation on your Windows notebook.
Entry-Level Ground Scanner with App

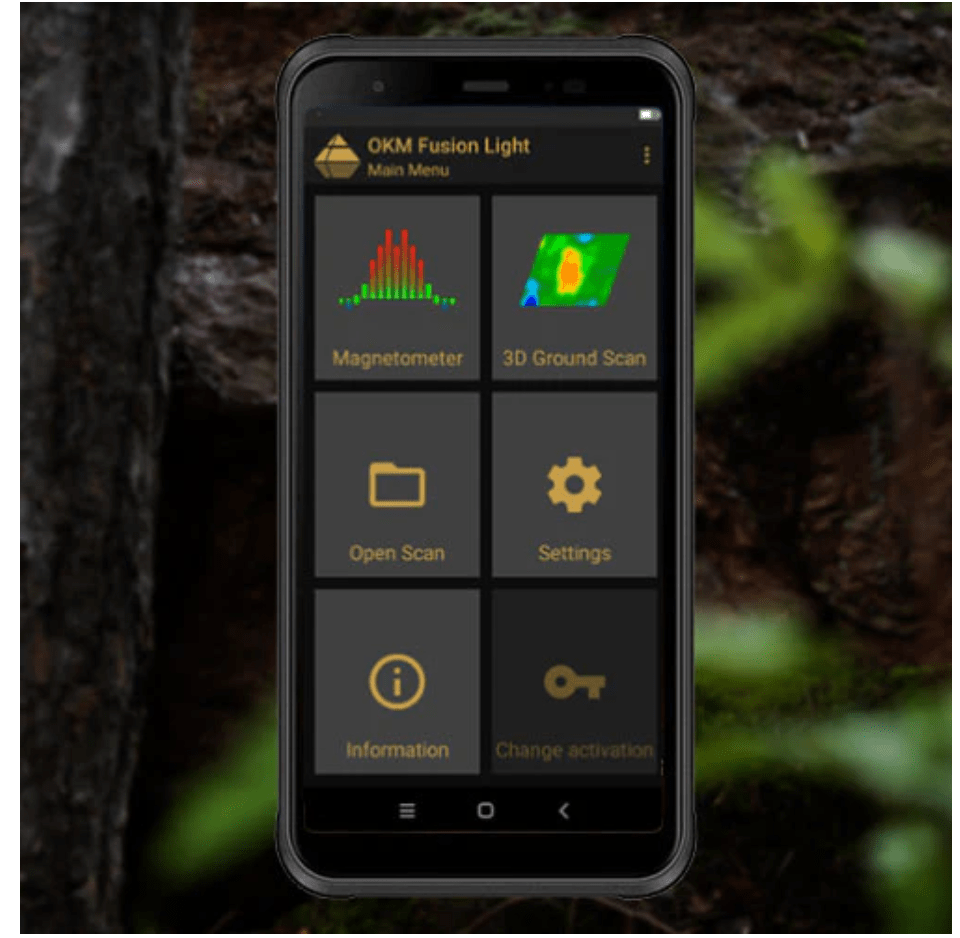

The operating mode 3D Ground Scan allows treasure hunters to detect gold treasures as well as underground anomalies and to visualize the scan data immediately on their Android smartphone via OKM App.
With its integrated Magnetometer the Fusion Light is able to locate ferrous metals like militaria and iron boxes filled e.g. with silver and gold coins, valuables and precious artifacts.
Discover a New Dimension of Treasure Hunting
This 3D ground scanner comes with a small delivery scope that includes everything you need for a fast and successful treasure hunt: Fusion Ultra Light, the lightweight among the metal detectors and 3D ground scanners, includes a compact Control Unit with integrated sensors and is controlled via App for Android smartphones. The operating modes Magnetometer and 3D Ground Scan are essential for successful treasure hunts. After scanning your target area, the scan results are visualized in the Android App directly on your smartphone and can be further analyzed with Visualizer 3D Studio software on your Windows notebook.
- Compact: Easy-to-use and easy-to-transport treasure detector for users with small budget – perfect to achieve first successes
- Detection depth: Customers found objects down to 8 m (26 ft) deep
- Use cases: Treasure hunting, cavity detection
- Operating modes: 3D Ground Scan, Magnetometer
- Detectable objects: Treasure chests, cavities, tunnels

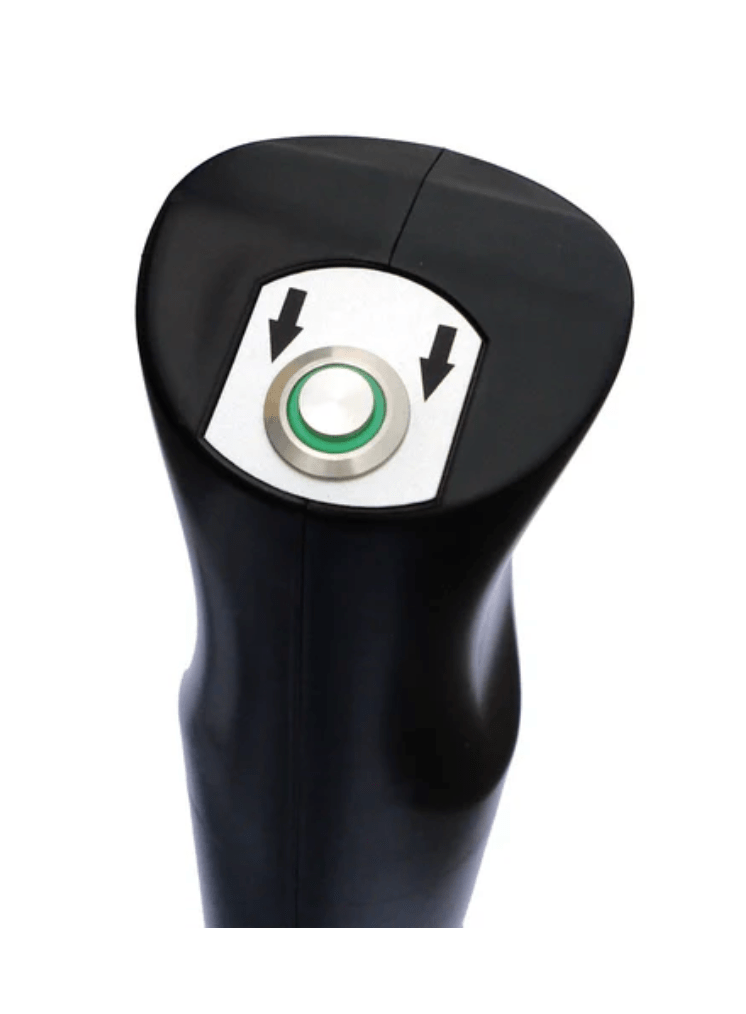

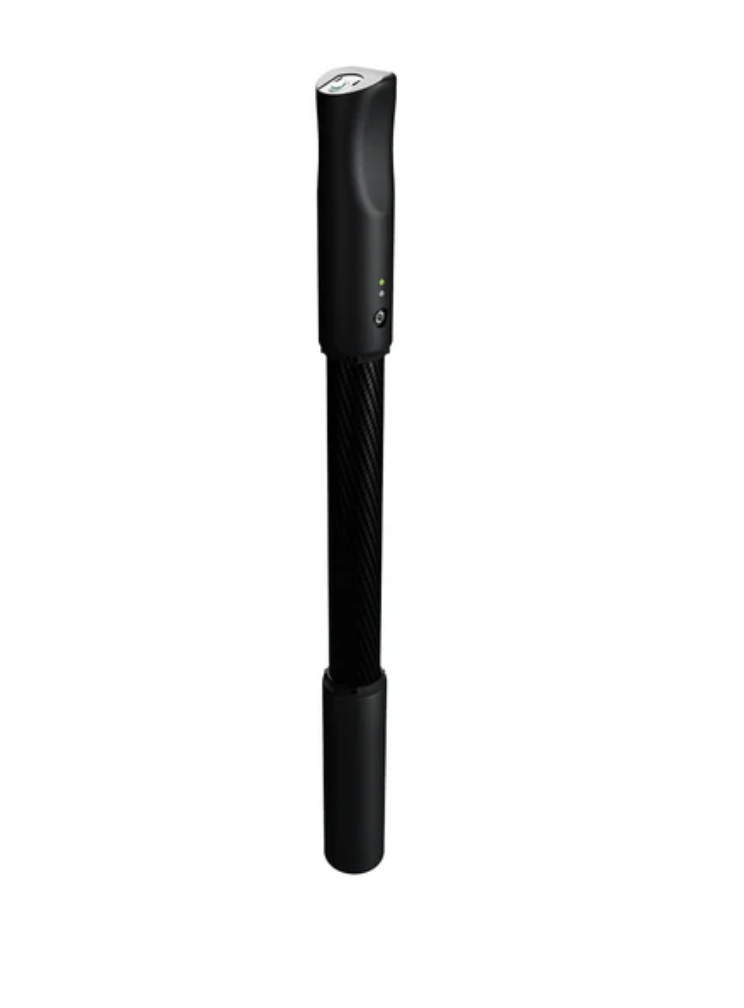

Control Unit
- Dimensions (H x W x D): 800 x 65 x 65 mm
- Weight: approx. 700 g
- Input voltage (max.): 19 V DC, 3.16 A
- Lithium-Ion baterry: 2600 mAh
- Operating time: approx. 12 h
- Charging Time: approx. 3 h
- Processor / Main CPU: Cortex M3, 32 MHz
- Processor / Slave CPU: Cortex M0, 24 MHz
- Sample rate: 1024 values / second
- Measurement resolution: 16 bit
- Operating temperature: –10°C – 60°C
- Storage temperature: –20°C – 70°C
- Waterproof: No
- Sensor technology / Coil technology: SCMI-15-D
- Air humidity: 5% – 75%
- Protection Type: IP40
Data Transmission
- Technology: Bluetooth 5.1
- Frequency: 2.402 – 2.480 GHz
- Maximum Transfer Rate: 1 Mbps
- Maximum Transmitting Power: +8 dBm
- Maximum Range: approx. 10 m
Computer Minimum Requirements for Visualizer 3D Studio
- Interface (data transmission): USB 2.0
- Free disk space: minimum 250 MB
- Working memory (RAM): 2 GB
- Display: 1920 x 1080
- Processor: 1.2 GHz
- Graphics card: 1 GB RAM, OpenGL 3.3
- Operating system: Windows 10
Smartphone Minimum Requirements for Fusion Light App
- Android Version: min. Android 7.1 (Nougat)
- Wireless Connection: Bluetooth 5.1
- Display Resolution max: 1440 x 720 px
- Download File Size: Setup 2.8 MB, Update 2.83 MB
The technical data are average values. Minor deviations are possible during operation.
